The Dahua PHSA1.8 Indoor Fine Pixel SMD Module uses SMD1010 SMD technology to deliver consistent 600cd² brigh/mtness and a 140-degree viewing angle, making it well suited for conference rooms and corporate control centers.

Built on SMD1010 SMD package technology, the Dahua PHSA1.8 Indoor Fine Pixel Module offers a dependable balance of image clarity, viewing angle, and operational cost for mid-range indoor installations. Available with 1.69mm and 1.935mm pixel pitch options across EH, SH, and MH variants, this module is widely deployed in conference rooms, monitoring centers, and corporate control room environments across Pakistan. The 650×365×88mm cabinet weighs 7.8kg and provides a 140°/140° horizontal and vertical viewing angle, ensuring image consistency is maintained for viewers positioned away from center. Operating at 600cd/m² brightness, the PHSA1.9 is calibrated for typical indoor ambient lighting conditions without requiring excessive power draw. Rear maintenance access keeps technician work isolated from the viewing side of the display, useful for installations where front-facing aesthetics must remain undisturbed during servicing. The module’s 96×72 and 84×63 resolution configurations (depending on pitch variant) allow flexible video wall sizing to match available wall space in Pakistani commercial and institutional buildings.

Key Features

• SMD1010 SMD package for reliable mid-range pixel density performance
• Available in 1.69mm and 1.935mm pixel pitch options
• 140°×140° wide viewing angle maintains image consistency off-center
• 600cd/m² brightness calibrated for typical indoor ambient lighting

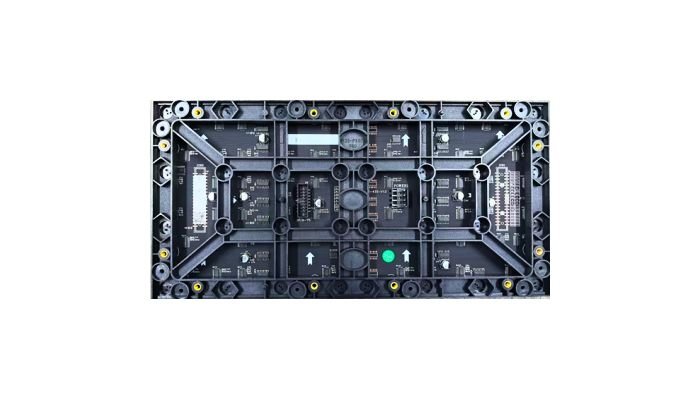

• Rear maintenance design keeps the viewing surface undisturbed during service
• 650×365×88mm cabinet suits standard conference and control room layouts
• Three SMD package variants (EH/SH/MH) for flexible project specification
• Dependable for 24/7 monitoring center and control room operation

Technical Specifications
