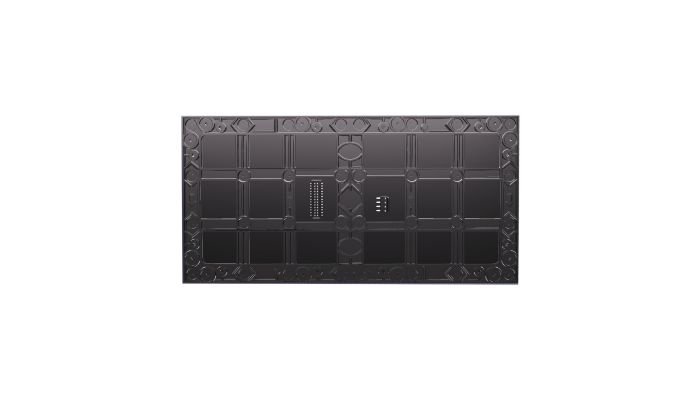

The Dahua PHSA1.6 Indoor SMD Module combines a compact 640×360mm cabinet with front maintenance access, making it a practical choice for surveillance centers and corporate lobby installations across Pakistan.

The Dahua PHSA1.6 Indoor SMD Module series, available in EH, SH, and MH SMD package variants, is designed for indoor video wall applications requiring reliable, consistent image quality at a balanced cost. With a 1.6mm pixel pitch and a 640×360×58mm cabinet, the PHSA1.6 fits efficiently into surveillance center layouts, corporate reception walls, and exhibition booth displays. The cabinet weighs 7.4kg and uses front maintenance access, allowing technicians to service individual panels quickly without disturbing neighboring units. Operating temperature range from 0°C to 40°C with 10-90% humidity tolerance makes the PHSA1.6 dependable for standard indoor climate-controlled environments throughout Pakistan, including Lahore, Karachi, and Islamabad installations. The display draws approximately 195W/m² under AC100-240V power input, balancing image quality with manageable operating costs for continuous-use environments such as monitoring rooms and retail video walls.

Key Features

• 1.6mm pixel pitch balances image sharpness with cost efficiency
• Compact 640×360mm cabinet fits standard indoor video wall layouts
• Lightweight 7.4kg cabinet for easier handling during installation
• Front maintenance design speeds up servicing without cabinet removal
• Wide 0°C to 40°C operating range suited to Pakistani indoor climates
• AC100-240V flexible power input for regional voltage compatibility
• Three SMD package variants (EH/SH/MH) for project-specific selection
• 100,000-hour MTBF rating for dependable long-term operation

Technical Specifications
