The Dahua PHGOA10 Outdoor Fixed SMD Module is engineered for Pakistan’s largest outdoor display projects, offering up to 6,000 nits brightness and IP68-rated rear protection for stadiums and motorway signage.

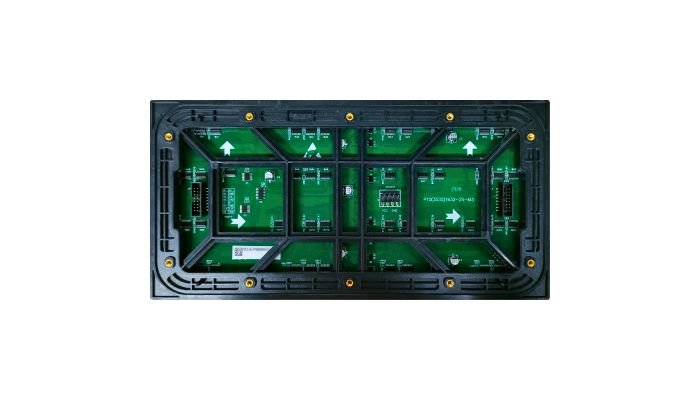

The Dahua PHGOA10-FC (DHI-PHGOA10-FC) Outdoor Fixed SMD Module represents the largest pixel pitch in Dahua’s standard outdoor fixed lineup, purpose-built for stadium scoreboards, motorway-facing advertising, and expansive open-area public displays across Pakistan. At a 10.42mm pixel pitch with 96×96 dots per 1000×1000mm cabinet, the module achieves brightness levels of up to 6,000 nits, ensuring strong daylight visibility for venues such as cricket stadiums, football grounds, and large public gathering spaces. Select variants of the PHGOA10 series achieve an even higher protection grade, with IP68 rating on the front and IP66 on the rear, providing exceptional resistance to dust ingress and water exposure during Pakistan’s monsoon season. Accurate electric distribution technology for the RGB SMD chips reduces power consumption by more than 30 percent compared to conventional designs, while an aluminum module chassis and panel frame accelerates heat dissipation for stable long-term performance. The 3,840Hz refresh rate ensures smooth video playback for live sports broadcasts and dynamic advertising content, and dot-by-dot calibration maintains color richness and brightness uniformity across large multi-cabinet stadium installations.
Key Features
- Largest standard pixel pitch in Dahua’s outdoor lineup — built for stadiums and motorways
- Brightness up to 6,000 nits for strong daylight visibility at long distances
- PH variant offers IP68 front / IP66 rear — exceptional monsoon-season protection
- Accurate RGB electric distribution cuts power consumption by 30%+
- Aluminum module chassis accelerates heat dissipation for stability
- 3,840Hz refresh rate supports smooth live sports broadcast playback
- Dot-by-dot calibration ensures uniform color across large stadium installations
- 100,000-hour service life for dependable continuous outdoor operation
Technical Specifications
| Installation Type | Outdoor |
| Pixel Pitch | P10.42 (10.42mm) |
| SMD Package Variants | FC, EH, SH, PH |
| Cabinet Resolution | 96 × 96 dots |
| Cabinet Size | 1000 × 1000 mm |
| Brightness | Up to 6,000 nits |
| Refresh Rate | 3,840 Hz |
| IP Rating (Standard) | IP65 (Front and Rear) |
| IP Rating (PH Variant) | IP68 Front / IP66 Rear |
| Power Saving | 30%+ reduction via accurate RGB electric distribution |
| Chassis Material | Aluminum module chassis and panel frame |
| Calibration | Dot-by-dot color richness and brightness uniformity |
| Lifespan | 100,000-hour service life |
| Operation | Designed for 24/7 continuous outdoor operation |
