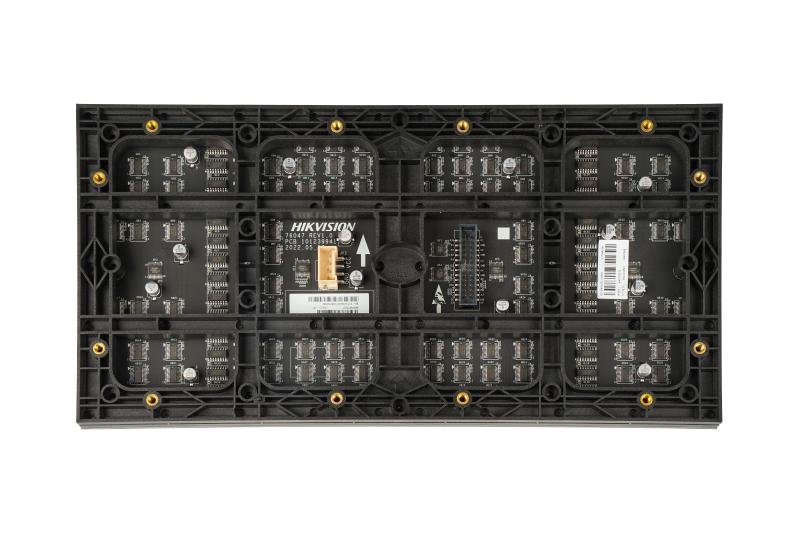

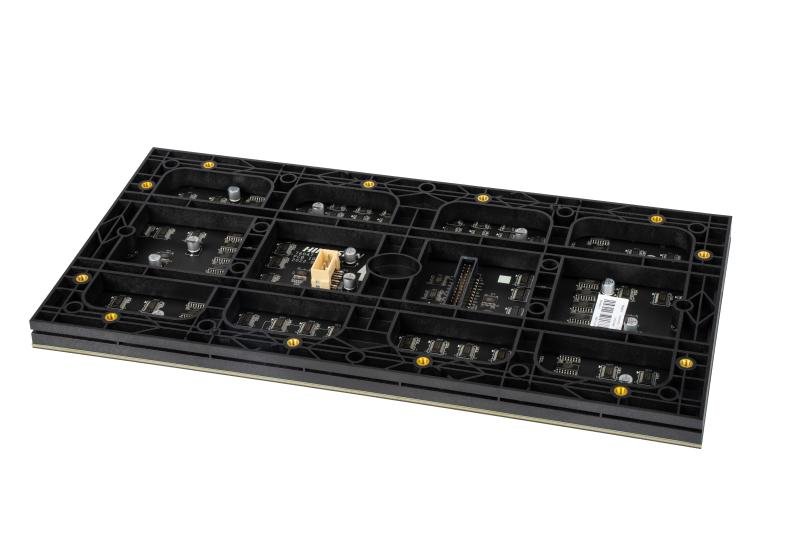

The Hikvision P1.2 Indoor SMD Module delivers extraordinary image clarity with a 1.2mm pixel pitch — perfect for command centers, boardrooms, and high-end corporate environments demanding pixel-perfect visuals at close viewing distances.
When your application demands the absolute finest visual resolution at close range, the Hikvision P1.2 Indoor SMD Module stands as a benchmark in fine-pitch display technology. With 640,000 pixels per square meter and a 3840Hz ultra-high refresh rate, this module eliminates screen flicker and delivers seamless, lifelike imagery under any camera or broadcast condition. The standardized 320×160mm module form factor enables effortless large-scale video walls for 1080p and 4K configurations. Hikvision’s proprietary PixMaster image processing enhances color accuracy, contrast, and motion clarity without additional hardware. Certified to CE-EMC, CE-LVD, CB-LVD, and RoHS standards, this module is the preferred choice for government command centers, financial trading floors, broadcast studios, and premium corporate headquarters across Pakistan.
Key Features
- Ultra-fine 1.2mm pixel pitch for close-range high-definition viewing
- Standardized 320×160mm module size — compatible with 1080p & 4K video walls
- Hikvision PixMaster proprietary image processing for enhanced clarity
- 3,840Hz high refresh rate — eliminates flicker in camera/broadcast environments
- HOB (Hikvision On Board) technology for superior moisture and dust resistance
- PWM energy-saving driver IC with 64-level brightness control
- Front-access maintenance for reduced installation depth requirements
- Full-cycle in-house quality control — ranked Top 3 globally in fine-pitch SMD
Technical Specifications
| Pixel Pitch | 1.2 mm |
| Module Size | 320 × 160 mm |
| Pixel Density | 640,000 dots/m² |
| Brightness | 800 nits (adjustable) |
| Refresh Rate | Up to 3,840 Hz |
| Frame Rate | 60 Hz |
| Contrast Ratio | ≥ 5,000:1 |
| Color Temperature | 3,000K – 10,000K adjustable |
| Viewing Angle | Horizontal 160° / Vertical 160° |
| LED Type | SMD / HOB (Hikvision On Board) |
| Peak Power Consumption | 600 W/m² |
| Average Power Consumption | ≤ 200 W/m² |
| Power Supply | 110–240 VAC ±15% |
| Drive Mode | Constant Current |
| Service Life | ≥ 100,000 hours |
| Operating Temperature | -10°C to +40°C |
| Humidity | 10% – 80% RH (non-condensing) |
| Certifications | CE-EMC, CE-LVD, CB-LVD, RoHS |
| IP Rating | IP30 (Indoor) |
| Maintenance | Front-access maintenance |
