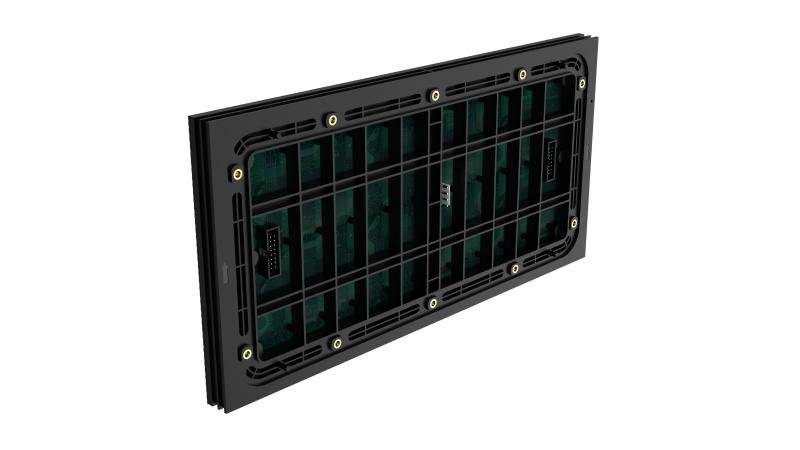

The Hikvision P5 Outdoor SMD Module is an IP65-rated, high-brightness solution for large-format outdoor advertising, stadium perimeters, and roadside digital billboards where long viewing distances demand impactful visuals.
Bridging the gap between fine-pitch quality and large-scale outdoor economics, the Hikvision P5 Outdoor SMD Module is purpose-built for Pakistan’s growing outdoor digital advertising market. At 40,000 pixels per square meter and ≥6,500 nits brightness, it produces vivid, eye-catching content on large billboards, stadium fascia, shopping mall exteriors, and highway signage. The SMD2727 SMD construction and fully sealed IP65 cabinet withstand rain, dust, and UV radiation without compromising display performance. Its wide 140° horizontal viewing angle maintains consistent image quality for motorists and pedestrians approaching from multiple directions. Paired with Hikvision’s SMD content management software, operators can schedule, update, and monitor display content remotely across multiple screens from a single dashboard.
Key Features
- 5mm pixel pitch — versatile outdoor resolution for medium-to-large format displays
- IP65 complete sealing — withstands monsoon, dust storms, and coastal humidity
- ≥6,500 nits high brightness for full visibility in direct Pakistani sunlight
- SMD2727 SMD for higher efficiency and longer lifespan than conventional outdoor SMD
- 24/7 continuous operation rating — built for advertising billboards and public displays
- Remote content management via Hikvision HikCentral FocSign software
- Modular 960×960mm cabinet for scalable installation of any billboard size
- Proven in outdoor deployments across Lahore, Karachi, and Islamabad
Technical Specifications
| Pixel Pitch | 5 mm |
| Module Size | 320 × 320 mm |
| Module Resolution | 64 × 64 pixels |
| Cabinet Size | 960 × 960 × 108 mm |
| Brightness | ≥ 6,500 nits |
| Color Temperature | 2,000K – 9,500K adjustable |
| Viewing Angle | Horizontal 140° / Vertical 140° |
| LED Type | SMD2727 |
| IP Rating | IP65 (fully sealed) |
| Peak Power Consumption | ≤ 800 W/m² |
| Average Power Consumption | ≤ 300 W/m² |
| Power Supply | 110–240 VAC ±15% |
| Drive Mode | Constant Current |
| Refresh Rate | Up to 3,840 Hz |
| Frame Rate | 60 Hz |
| Service Life | ≥ 100,000 hours |
| Operating Temperature | -20°C to +50°C |
| Humidity | 10% – 90% RH |
| Certifications | CE-EMC, CE-LVD, RoHS, IP65 |
| Pixel Density | 40,000 dots/m² |
